PLASTIC WELDING EQUIPMENT

HIGH VOLTAGE SPARK TESTERS

E1D CLICK FOR DATA SHEET           E1D KIT CLICK FOR DATA SHEET
         E1/D SPARK TESTER                      E1D SPARK TESTER KIT

The E1/D spark tester is a hand held electro-mechanical spark generator producing an output voltage that is adjustable between 10kV and 55kV.

The tester is powered by either 110Vac or 230Vac mains supply. Suitable for intermittent use, the unit is housed in a moulded pistol shaped case enabling single handed operation. The high frequency coil is a plug-in type to allow easy replacement. A range of probes and electrodes is available to suit all applications.



ST-R REMOTE PROBE SPARK TESTER
ST-R REMOTE PROBE SPARK TESTER



The ST-R spark tester is a remote probe type of electro-mechanical spark generator producing an output voltage that is adjustable between 10kV and 55kV.

The tester is powered by either 110Vac or 230Vac mains supply. The spark generator is housed in a thermoplastic housing and is  connected to the remote probe by 2 metres of cable. Spark generation is activated by pressing the switch on the remote probe handle and the output voltage is adjusted using the rotary knob on the front panel.

All the accessories for the E1D unit will fit the ST-R tester.


SPARK TESTER ACCESSORIES


CAL 55 CLICK FOR DATA SHEET

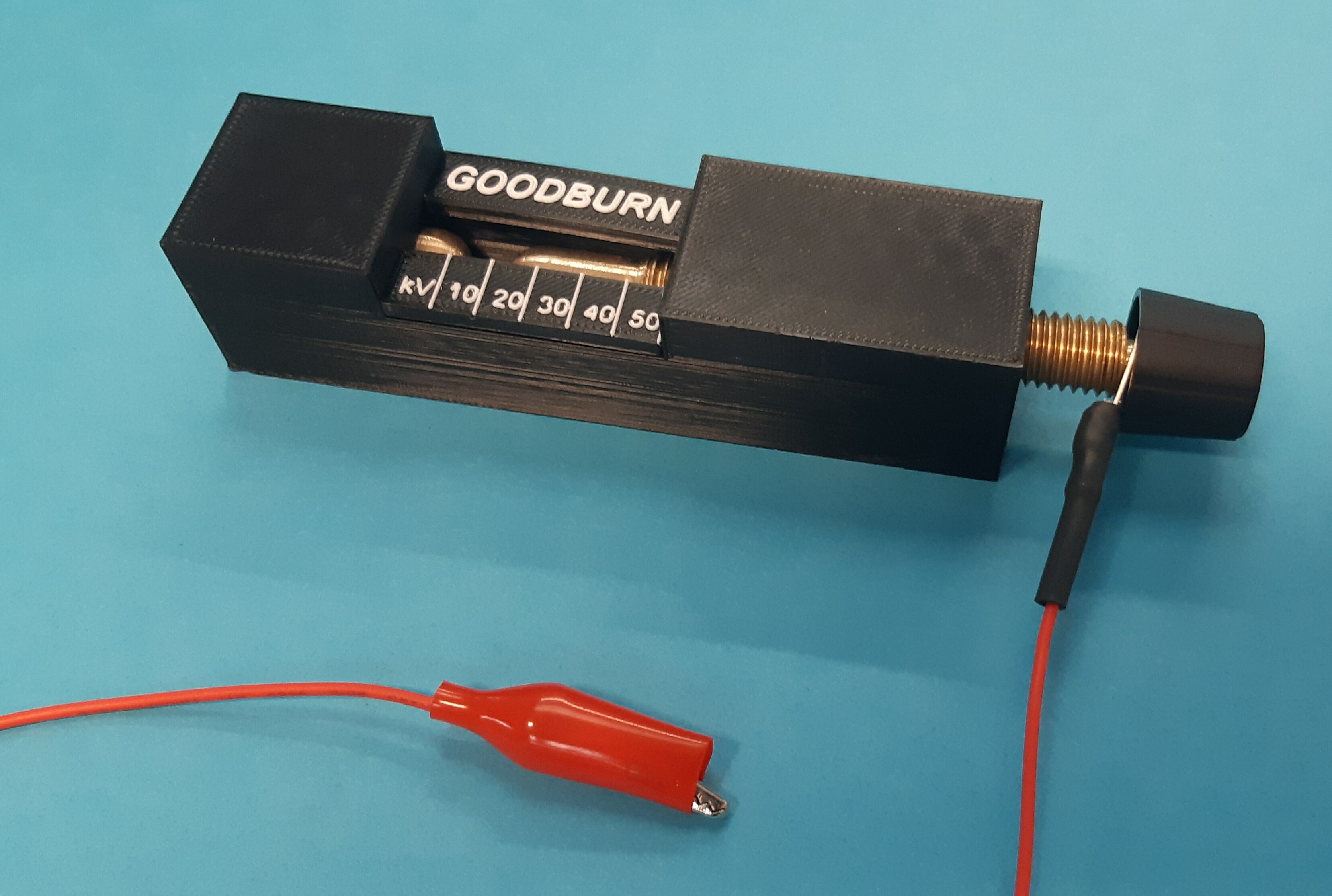

 CAL55 SPARK GAP CALIBRATOR




The CAL55 calibrator is designed to calibrate the output of the E1/D high frequency spark tester.

It will allow the scale on the back of the unit to be re-calibrated when necessary and can be used to set the output spark to a pre-set voltage level.



E4 gauze electrode E5 flexible electrode and E7 short pointed probe E8 Copper brush electrode and E6 Steel brush electrode E9 and E10 electrode extension rods
PROBES AND ELECTRODES


       Item Application Part Number
  HF Coil Replacement part E3
  Gauze electrode Flat surfaces E4
  Flexible probe General use E5
  Steel brush electrode Irregular surfaces E6
  Short pointed probe Small areas E7
  Copper brush electrode Large irregular surfaces E8
  200mm extension rod Inaccessible surfaces E9
  450mm extension rod Inaccessible surfaces E10

________________________________________________________

PLASTIC WELDING EQUIPMENT

WELDING TORCHES

(CLICK ON PRODUCT PICTURE FOR DATA SHEET)

T2C Welding torch      T2R Welding torch



T2C WELDING TORCH
 T2R WELDING TORCH

BACK TO TOP


The T2C is a lightweight welding torch that is ideal for production use. It incorporates electronic temperature control, giving an air jet temperature of up to 400ºC, making it suitable for welding most common types of thermoplastic material. The T2C requires an external source of dry, clean air producing 70 l/min. If the air supply is restricted, an over temperature circuit will cut the power to prolong element life.

The T2R is our new lightweight welding torch. The hose to body connection can rotate through 270º to avoid hose "wind-up". The new thermoplastic body has internal air channel and frontal jets to reduce the temperature of the barrel.  The torch incorporates electronic temperature control giving an air jet temperature of up to 400ºC, making it suitable for welding most common types of thermoplastic material. The T2R requires an external source of dry, clean air producing 85 l/min. If the air supply is restricted, an over temperature circuit will cut the power to prolong element life. All T2C accessories will fit the T2R torch.
________________________________________________________

WELDING RODS


Goodburn - plastic welding rods in LDPE, HDPE, PVC or PP

We can also supply all common types of weld filler rod - PVC, uPVC, HDPe, LDPe, PP etc in 2Kg reels, 5Kg reels or in 1Kg packs of 1 metre lengths. We can ship worldwide.



________________________________________________________

WELDING TORCH ACCESSORIES

 NOZZLES AND ACCESSORIES Mobrey IMP Sigma Data Acquisition Plastic Welding
NOZZLES

A wide range of nozzles is available to suit a variety of welding rod shapes, sizes and applications. The range also includes knives and scrapers for weld preparation and wire brushes for nozzle and torch cleaning. Complete welding kits, containing torches, nozzles and accessories are also available.

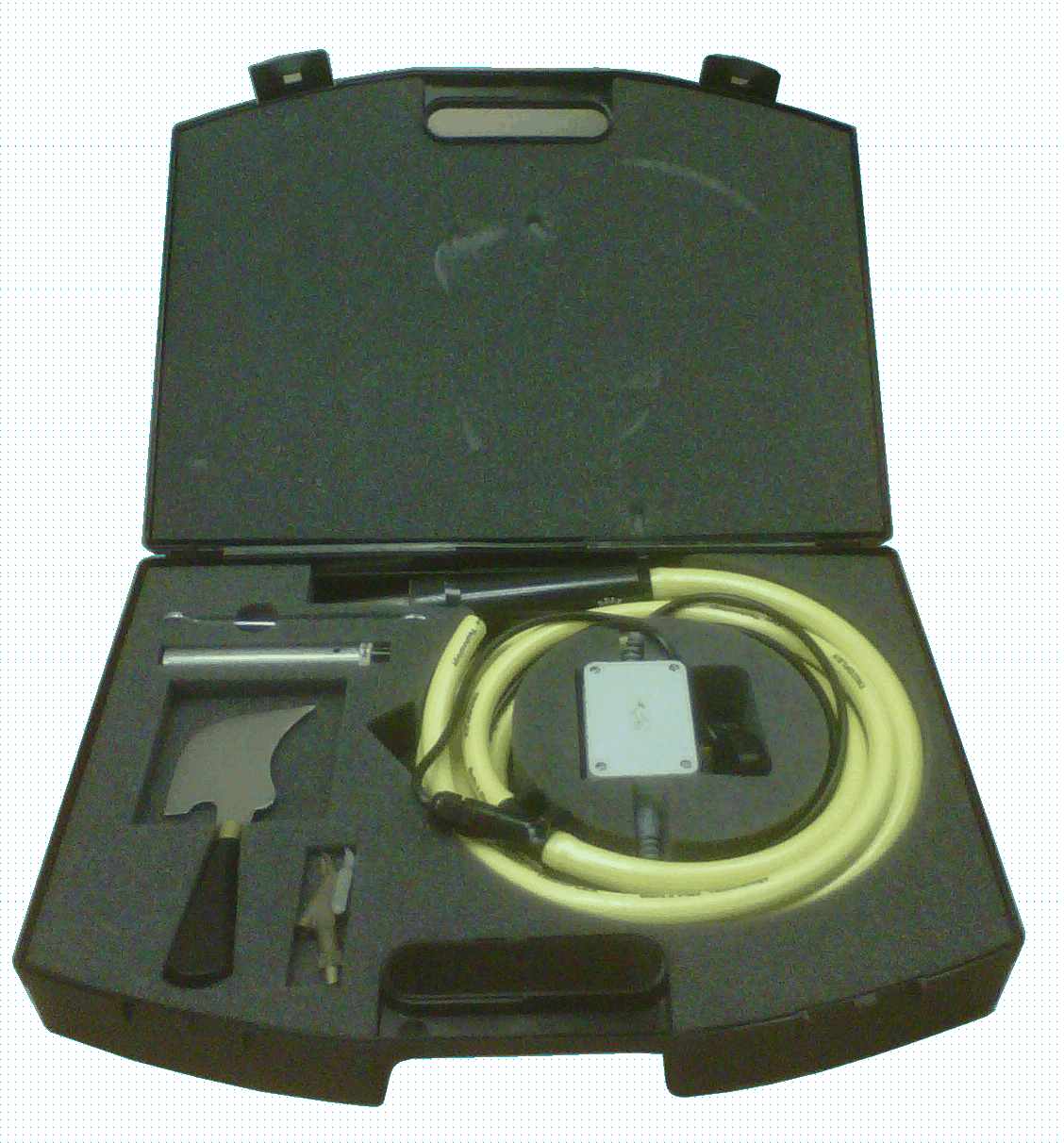

T2C Welding Kit

T2C WELDING TORCH KIT
